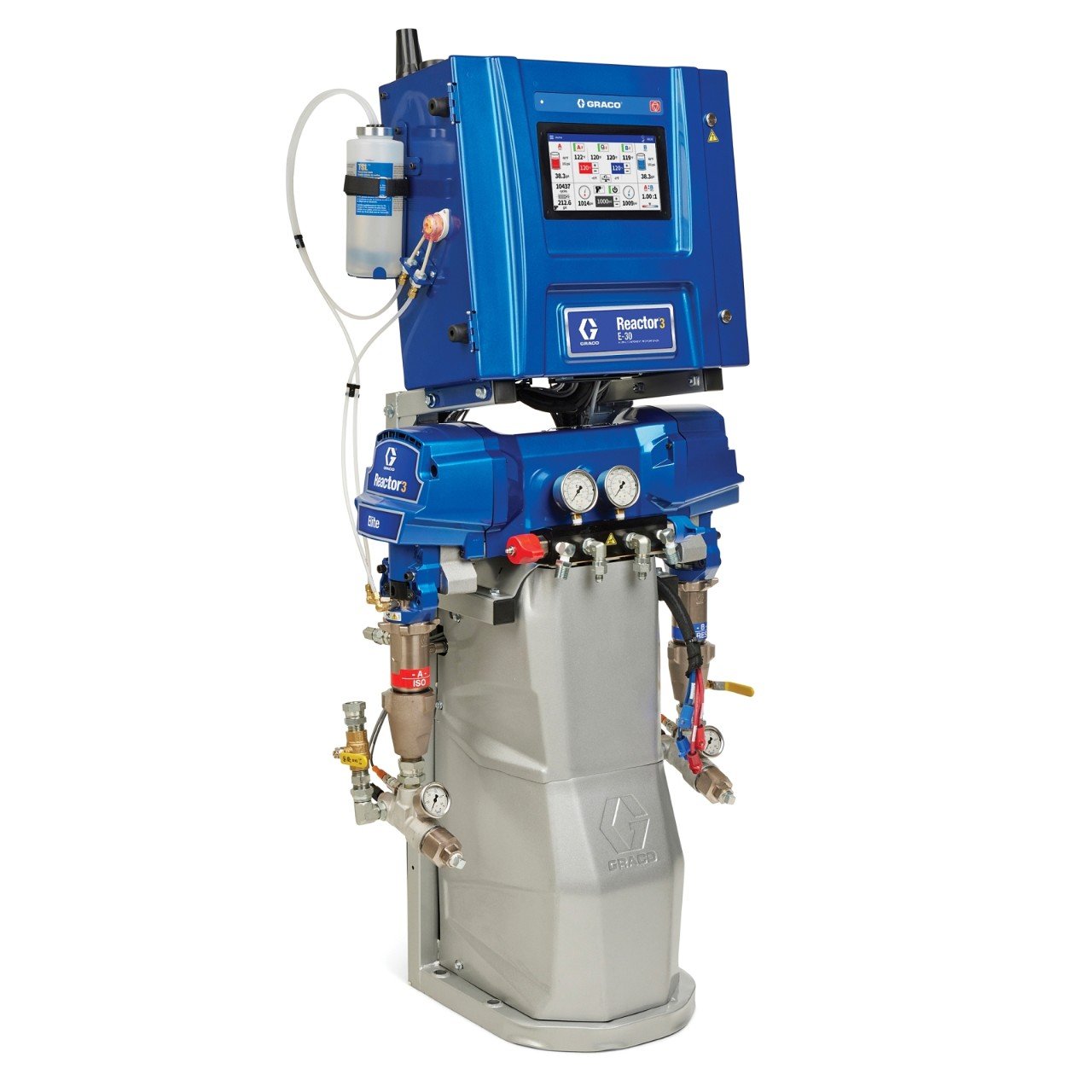

Graco PU spray machine Reactor 3 E-30 Elite
Graco PU spray machine

Part Number: 26R332

Graco Pu spray Machine Distributor Dubai Alrimh the best graco supplier in UAE provides graco spray machines for a perfect finish of your work. Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Graco PU spray machine especially Reactor 3 is designed to communicate with the entire system, simplify the operator’s job, optimize spray parameters, and maximize productivity.

The E-30 is a spray foam system built for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is a perfect machine that can be the workhorse of your fleet, capable of handling most jobs with a good mix of output, heat, and features.

  • Katalyst

    • Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps
  • Smart Supply

    • Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials
  • Auto Pressure Balance
    • Automatically adjusts temperatures to optimize fluid pressures and maximize yield
  • Brushless motor for improved pressure/flow performance
  • New temperature control boards for independent hose heat
  • Voltage jumpers for easy changing between voltages
  • Robust UL listed electrical hose connectors are color coded and keyed for error-proof assembly
  • The large new touchscreen interface
  • Intuitive operation and navigation
  • All spray operations from one screen
  • Independent Hose Control
  • Control A and B materials to different temperatures for improved pressure balancing
  • Optimizes yield

Send message

Technical Specifications

Amperage (A) 200-240
Frequency (Hz) 50/60
Hose Heating Type No Hose
Hose Length (ft) 0
Maximum Flow Rate (lb/min) 30
Maximum Fluid Temperature (°F) 190
Maximum Operating Temperature (°F) 120
Maximum Spray Pressure (MPa) 14
Maximum Spray Pressure (psi) 2000
Model Reactor 3
Overall Depth (in) 15
Overall Height (in) 56.5
Overall Width (in) 26.8
Power Rating (kW) 15
Product Series Elite
Series E-30
Transfer Pump No Transfer Pump
Type Proportioner Package
Weight (lb) 325
